QUATT is a buffered multiple, attenuator and inverter all in one!
It takes the signals presented at its inputs and passes them through to its outputs at a reduced level or with an inverted polarity.
It also acts as a buffered multiple, meaning that the same signal can be used to drive all four outputs with no voltage drop.
Finally, the first input is normalled to 10V which can be used as a static voltage source.
For more information please see the Quickstart Guide on the Manuals and DIY Instructions page.

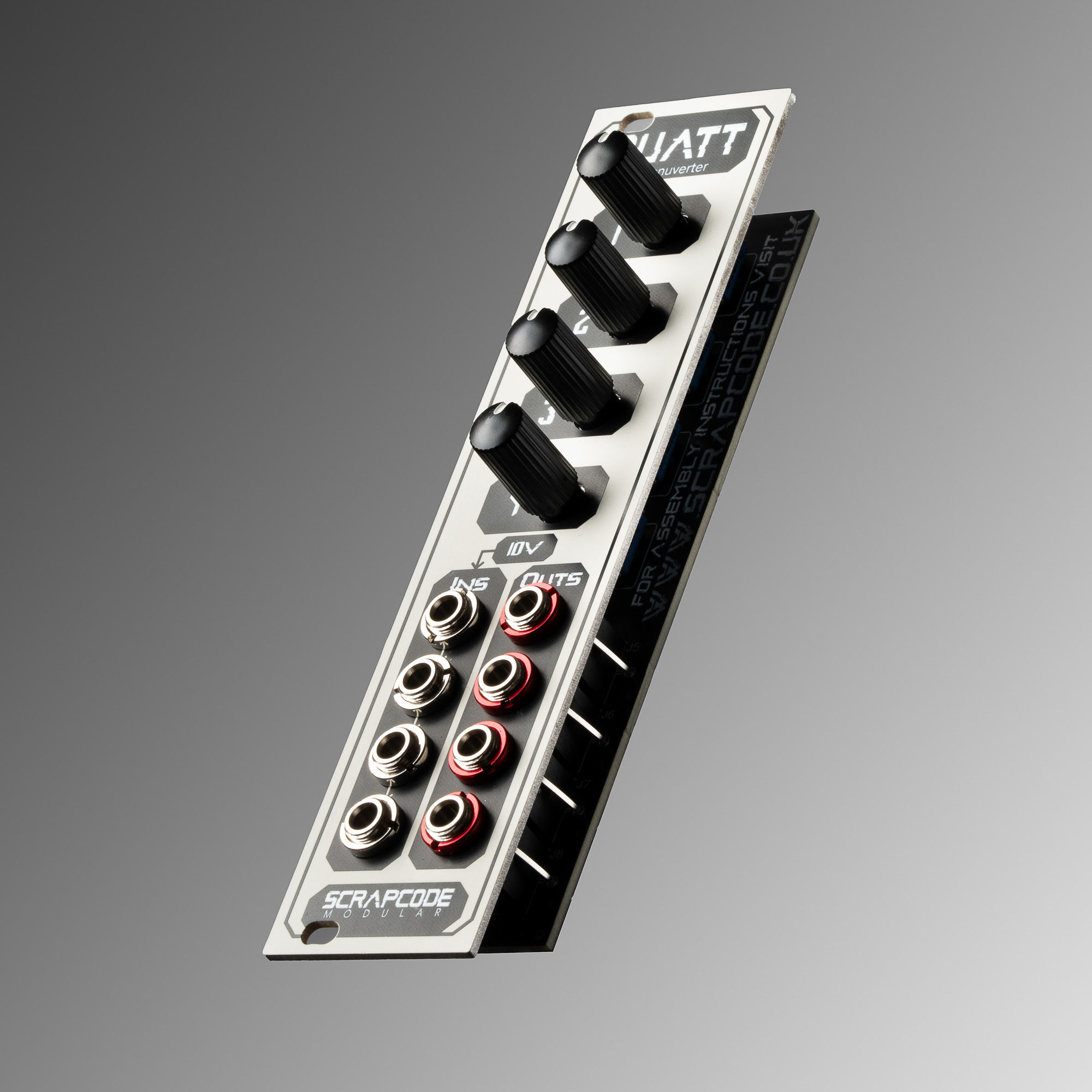

QUATT - Multenuverter
Tech Specs
Width – 6HP
Depth – 30mm (including ribbon connector)
+5V Current Draw – 0mA
+12V Current Draw – 22mA
-12V Current Draw – 10mA
